You may think that the most important part of becoming a DJ is the technical skills involved in mixing one track into the next.
While these skills are important there is one issue that every beginner DJ needs to be aware of. Effectively setting up your gain staging, also commonly referred to as gain structure, will give you the best results from your gear.
One common pitfall of new DJs is the sound level of their sets. This can often lead to clipping or redlining as it’s called. In this article, I’ll cover everything you need to know about setting up your gain staging and why it’s important.
Effectively setting up your gain staging will give you the best results from your gear. One common pitfall of new DJs is the sound level of their sets.
This can often lead to clipping or redlining as it’s called. In this article, I’ll cover everything you need to know about setting up your gain staging and why it’s important.
What is Gain Staging?
Sound theory is a deep subject so I’ll try to keep this as straightforward as possible. All sound coming from your equipment is converted into electronic signals. The corresponding volume of these signals is determined by the AC voltage of the signal.
These signals have a limit to how loud they can go. This is what amplifiers do. They amplify the signal to make it louder. The problem is that even the best gear in the world has a limit to how much it can handle.
By setting up your gain staging you ensure that you are getting the most out of your gear. It allows you to maximize volume while not introducing distortion or clipping.
When it comes to sound signals its best to visualize it. Sound travels in a wave. In the image below you can see the lowest and highest points. This range is the capacity of your sound system.
If the sound is over-amplified the sine wave exceeds these limits. Anything beyond those limits is signal that the sound system cannot handle. As a result, these frequencies are ‘clipped’ out.
Anything beyond the red lines is sound that is “clipped”.
There is a difference worth noting between analog and digital signals. Each signal is handled differently and as a result, it impacts the sound.
Analog circuits will have a maximum rating in decibels that it can handle. This is generally set by the manufacturer. Usually, there is some extra sound space available.
Once the sound is exceeding the requirements the impact on the sound will not be overly harsh to the ears. Some describe this as a warm distortion and in some cases, it can be used to add creative elements to your sets.
Digital circuits follow the same principle of having a maximum rating associated with them. The difference is there is no extra space for exceeding that rating.
Any sound that exceeds the specifications becomes distorted. Unlike Analog circuits this type of distortion is very unpleasant to the ear.
This is where the gain staging comes into play. By checking and setting each component you can prevent hearing these unpleasant distortions. Most professionally produced music will already have been mixed and mastered to balance audio levels. All you need to do is ensure your sound doesn’t interfere with this too much. You can learn more about mixing and mastering in our guide to the best headphones for mixing audio.
Need Help Choosing The Right DJ Gear?
Read our buying guides for:
Why is Audio Clipping Bad?
Now that you know how sound is handled by your sound system you may be wondering what happens when your sound does get clipped. There are many negative aspects to be aware of.
When your sound is getting clipped it is highlighting that your sound system is unable to handle the power coming to it and it results in distortion. As a DJ you want your music to sound crisp and clear. This applies to both the low and high end.
If any of the sound signals are getting clipped you are losing some frequencies of the track and replacing it with a horrible noise. This noise is unpleasant and will ruin even the most skillful of transitions. It can also turn a crowd-pleasing track into an abomination. If you want to learn more about the different types of distortions you can check out the video below.
The most common type of distortion you will encounter will be a hiss or hum. All analog circuits will build up some form of natural distortion.
It’s best to run the analog signal as close to the line as possible without clipping to minimize the impact of natural analog distortion. This will ensure that the natural analog hum or hiss is washed out by appropriately loud enough sound.
There is another negative to having your sound clipped. When your sound is getting clipped it is placing too much pressure on your sound system. This can cause damage to your sound system.
Cheap studio monitors will quickly blow as will even the best studio monitors. The last thing you want is for your brand new speakers to be blown buy excessive redline distortion.
This can also impact headphones as well and will quickly turn good DJ headphones into useless garbage.
How to Setup Your Gain Structure
It’s important to make sure all sound inputs are metered to prevent clipping and keep your mixes sounding great. It will also make sure your DJ speaker system will last you for years to come.
Setting all the levels in the right way is known as Gain Structure. This process will ensure you don’t experience clipping and also leave yourself some headroom for your mixes.
There are four main Gain Stages on any DJ setup. These are the elements that you’ll use to set up your Gain Structure.
- Each channel on your DJ gear will have a gain knob usually located above the Low/Mid/High EQ. This knob alters the sound for that particular channel.
- Underneath the EQ there will be channel faders. These also alter the volume of that channel.
- There is also a main gain knob for the entire mixer. Placement of these varies.
- The last gain stage is the volume control on your actual sound system.

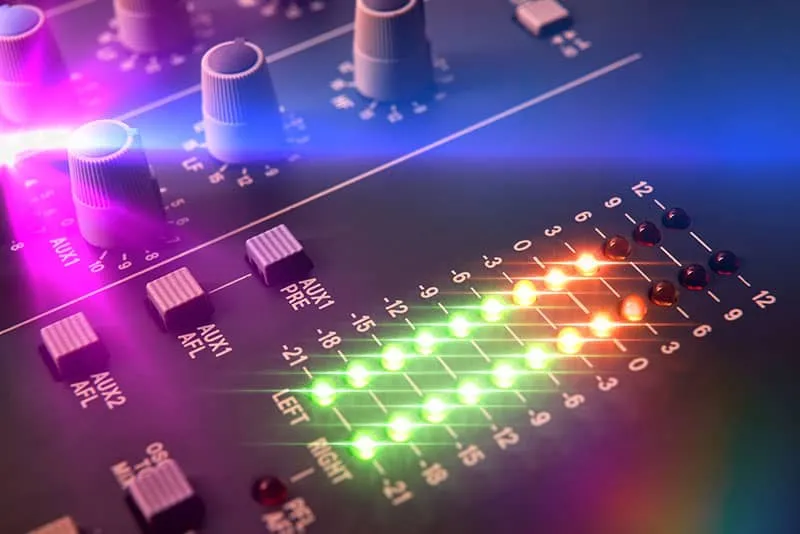

The most important component of setting up your Gain structure is to pay attention to the level meters. These are usually found on your DJ equipment or in your software. They go from green to orange to red.
